• RELE' 3Vcc 1 SCAMBIO MICRO PANASONIC AGQ210A03
Relè PCB AGQ210A03 - DPDT - Panasonic

Caratteristiche tecniche
  • Part Number    AGQ210A03
  • Protective construction    Sealed Type
  • Terminal shape    Surface-mount terminal
  • Contact type    Standard type
  • Contact mechanism    B.B.M
  • Contact arrangement    2 Form C
  • Contact material    Stationary contact: AgPd+Au clad
  • Movable contact: AgPd
  • Operating function    1 coil latching type
  • Nominal operating power    100mW
  • Nominal coil voltage    3V DC
  • Set voltage (at20°C 68°F)    75%V or less of nominal voltage (Initial)
  • Reset voltage (at20°C 68°F)    75%V or less of nominal voltage (Initial)
  • Nominal switching capacity (resistive load)    2A 30V DC, 0.3A 125V AC
  • Max.switching current    2A
  • Min. switching capacity    10µA 10mV DC
  • Breakdown voltage (Initial) : Between open contacts    750 Vrms for 1min. (Detection current: 10mA.)
  • Breakdown voltage (Initial) : Between contact and coil    1,500 Vrms for 1min. (Detection current: 10mA.)
  • Breakdown voltage (Initial) : Between contact sets    1,000 Vrms for 1min. (Detection current: 10mA.)
  • Surge breakdown voltage (Initial) : Between open contacts    1,500 V (10 x 160µs) (FCC Part 68)
  • Surge breakdown voltage (Initial): Between contacts and coil    2,500 V (2 x 10µs) (Telcordia)
  • Expected life : Mechanical    Min. 5 x 107 (at 180 cpm)
  • Expected life : Electrical    Min. 5 x 104 (2 A 30 V DC resistive), Min. 105 (1 A 30 V DC resistive), 105 (0.3 A 125 V AC resistive) (at 20 cpm)
  • Conditions    Ambient temperature: –40 to +85°C –40 to +185°F
  • Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
  • Height (mm)    5.4
  • Unit weight    Approx. 1 g .035 oz
  • Surface-mount terminal type    A type

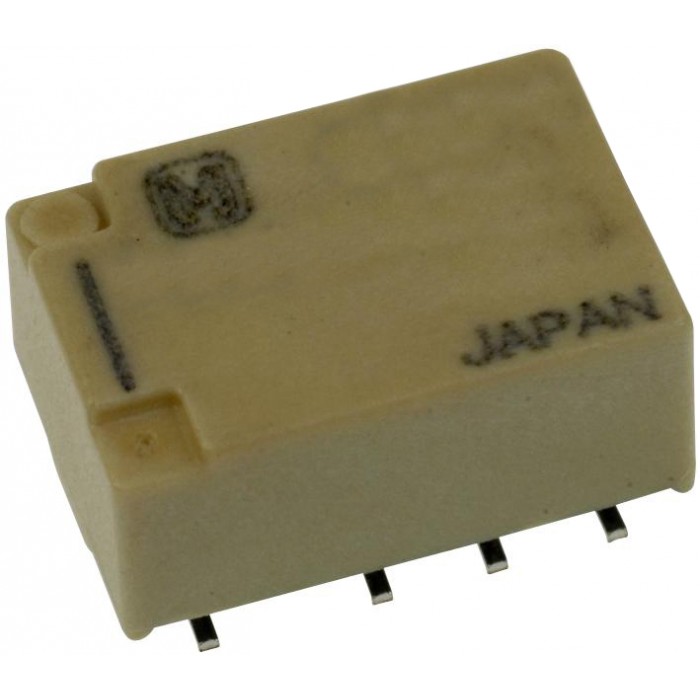

L'immagine ha il solo scopo di rappresentare il prodotto
La casa costruttrice si riserva di apportare modifiche senza preavviso

RELE' 3Vcc 1 SCAMBIO MICRO PANASONIC AGQ210A03

  • Codice Prodotto: 37.34090
  • Disponibilità: Disponibile
  • Prezzo Ivato : 4,51€
  • Imponibile: 3,70€

Prezzo Per Unità
Sconto %

Tag: RELE' 3Vcc 1 SCAMBIO MICRO PANASONIC AGQ210A03, Micro da circuito stampato
